Staples

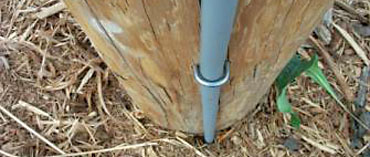

Electrical Materials Company supplies a full line of Staples, Date Nails, and fasteners for every pole line need. We offer Diamond Point and Cut Point type staples in a variety of finishes and materials including Hot Dip Galvanized, Copper, Zinc, and Aluminum Coated. They are excellent the various sizes of our Ground Wire Molding.
Specifications:
|
 |

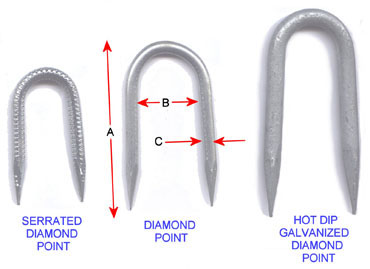

| Diamond Point Staples |
|
|
| Diamond Point Staples |
Zinc Plated or Hot Dip Galvanized |
Overall Length
(A) |
Inside Spread (B) |
Wire Dia.
(C) |
Pcs. per Box |
Boxes per carton |
Lbs/m pcs |
| 1" |
5 1/16" |
0.12" |
100 |
10 |
5.5 |
| 1 1/4" |
5/16" |
0.12" |
100 |
10 |
7.2 |
| 1 1/2" |
1/4" |
0.12" |
100 |
10 |
9 |
| 1 1/2" |
1/4" |
0.148" |
100 |
10 |
14 |
| 1 3/4" |
3/8" |
0.148" |
100 |
10 |
15 |
| 2" |
1 1/16" |
0.187" |
100 |
5 |
34 |
| 2" |
1/2" |
0.162" |
100 |
10 |
14 |
| 2" |
5/8" |
0.162" |
100 |
10 |
25 |
| 2" |
5/8" |
0.187" |
100 |
10 |
32 |
| 2 1/4" |
25/32" |
0.187" |
100 |
10 |
36 |
| 2 1/2" |
29/32" |
0.187" |
100 |
10 |
40 |
| 3" |
1 1/2" |
0.187" |
100 |
5 |
47 |
| 3" |
5/8" |
0.187" |
100 |
10 |
68 |
| 2" |
1 1/16" |
0.187" |
100 |
5 |
34 |
| 3" |
1 1/16" |
0.25" |
100 |
5 |
75 |
| 4" |
1 1/16" |
0.25" |
50 |
5 |
95 |
| 3" |
1 1/2" |
0.25" |
100 |
5 |
80 |
| 3 1/2" |
1 1/2" |
0.25" |
50 |
5 |
95 |
|
 |
| |
|
|

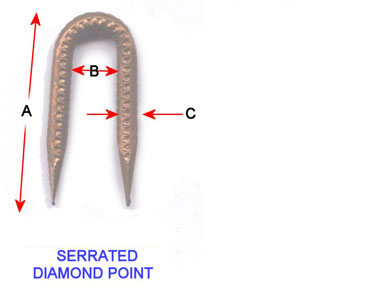

| Diamond Point Staples |
Copper Coated |
Overall Length
(A) |
Inside Spread (B) |
Wire Dia.
(C) |
Pcs. per Box |
Boxes per carton |
Lbs/m pcs |
| 1" |
1/4" |
0.114" |
500 |
10 |
5 |
| 1 1/4" |
1/4" |
0.114" |
500 |
10 |
6 |
| 1 1/2" |
1/4" |
0.114" |
500 |
10 |
9 |
| 1 1/2" |
5/16" |
0.144" |
500 |
5 |
14 |
| 1 3/4" |
3/8" |
0.144" |
500 |
5 |
15 |
| 2" |
1/2" |
0.162" |
500 |
5 |
24 |
| 2" |
5/8" |
0.162" |
500 |
5 |
25 |
| 2" |
5/8" |
0.187" |
100 |
10 |
32 |
| 2 1/4" |
25/32" |
0.187" |
100 |
10 |
36 |
| 2 1/2" |
29/32" |
0.187" |
100 |
10 |
40 |
| 3 |
3/4" |
0.25" |
100 |
5 |
70 |
| 2" |
1 1/16" |
0.187" |
100 |
10 |
34 |
| 2 1/2" |
1 1/16" |
0.187" |
100 |
10 |
42 |
| 3" |
1" |
0.25" |
100 |
5 |
75 |
| 3" |
1 1/16" |
0.25" |
100 |
5 |
77 |
| 3" |
1 1/2" |
0.25" |
100 |
5 |
77 |
| 3 1/2" |
1 1/2" |
0.25" |
100 |
5 |
95 |
| 3 3/4" |
1 3/4" |
0.25" |
50 |
5 |
102 |
|
 |
| |
|
|
| Cut Point Staples |
|
|
| Cut Point Staples |
| Pre-galvanized and Hot Dip Galvanized |
Packed 50 Pounds Per Carton |
Overall Length
(A) |
Inside Spread (B) |
Wire Dia.
(C) |
Approx. Pcs. per
50 lb Ctn. |
| 1 1/2 " |
1/4" |
0.148" |
3600 |
| 1 3/4" |
1/4" |
0.148" |
3500 |
| 1 7/8" |
1 1/16" |
0.187" |
1650 |
| 2" |
1/4" |
0.162" |
2300 |
| 2" |
1/2" |
0.162" |
2200 |
| 2 1/4" |
11/16" |
0.162" |
1800 |
| 2 1/2" |
1/4" |
0.162" |
2100 |
| 2 1/2" |
3/8" |
0.162" |
2000 |
| 2 3/4" |
3/4" |
0.187" |
1075 |
|
 |
|
| |
|
|
| Cut Point Staples |
| Copper Coated |
Packed 50 Pounds Per Carton |
Overall Length
(A) |
Inside Spread (B) |
Wire Dia.
(C) |
Approx. Pcs. per
50 lb Ctn. |
| 1 1/4" |
3/16" |
0.144" |
6700 |
| 1 3/8" |
1/2" |
0.162" |
3100 |
| 1 1/2" |
3/8" |
0.162" |
2900 |
| 2" |
1/4" |
0.162" |
2300 |
| 2" |
1/2" |
0.162" |
2200 |
| 1 3/4" |
3/8" |
0.144" |
3500 |
| 2" |
3/8" |
0.144" |
3500 |
|
 |
|
| |
|
|

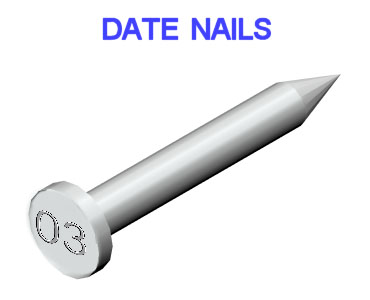

Date Nails
• Made to special order.
• Hot dip galvanized.
• 2 1/2" overall length, 3/16" diameter with
1/4" raised numerals and 1/2" diameter head. |
 |
| |
|
|
| |
|
|
| |
|
|
|
|
