Un-metered RV Power Pedestals

The Electrical Materials Company Un-metered RV Power Pedestals provide electrical service for individual sites in campgrounds and RV parks. All of our unmetered RV power pedestals are c UL us listed for the U.S. and Canada, rated 120/240 V and the pedestals are NEMA 3R and CSA enclosure 3R.

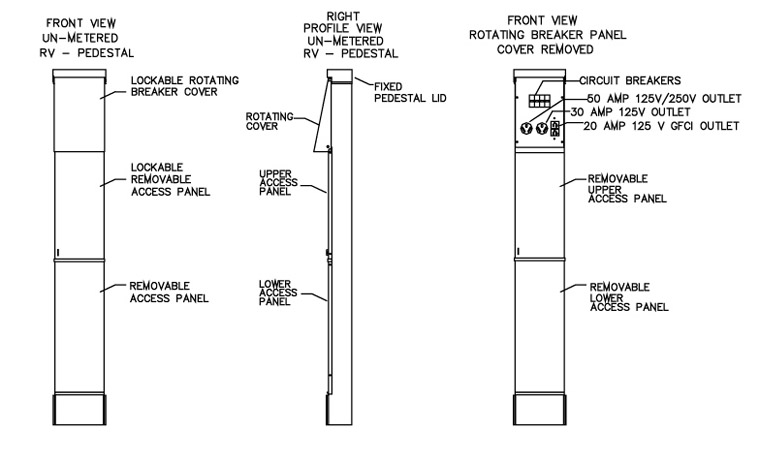

Our 100 amp direct burial version (cat# RVUMPED) is our most popular item and that version includes 50, 30 and 20 amp receptacles and circuit breakers, which allows flexibility of use with all of the classes of RV’s and travel trailers in use today. Please see the photo at the right which shows a close-up view of the power-head compartment (upper portion) of the 100 amp RV Pedestal.

We also offer pedestals with different receptacle configurations, so please call us for more information on those products. In addition, many of the RV Pedestal models are also UL listed for use as temporary service equipment. These models are ideal for construction sites, carnivals, fairs and festivals.

Features:

• c UL us listed

• Fabricated and assembled in the USA of U.S. and international components.

• 120/240 V electrical service, from 20 to 100 amps.

• Rainproof steel enclosure.

• Factory wired.

• Receptacles and circuit breaker options available including: 50/30/20, 30/20, 30/30/20 and 50/20 amp.

• Feed through style lugs or single lugs available.

• Metered units available.

• Standard construction: Riveted G90 galvanized steel with polyester powder coat paint. Also available in plain stainless and powder coated stainless steel construction.

• Standard color light grey, but other colors available
  upon request.

• Pad-lockable panels.

• Direct burial and pad mounting versions available.
